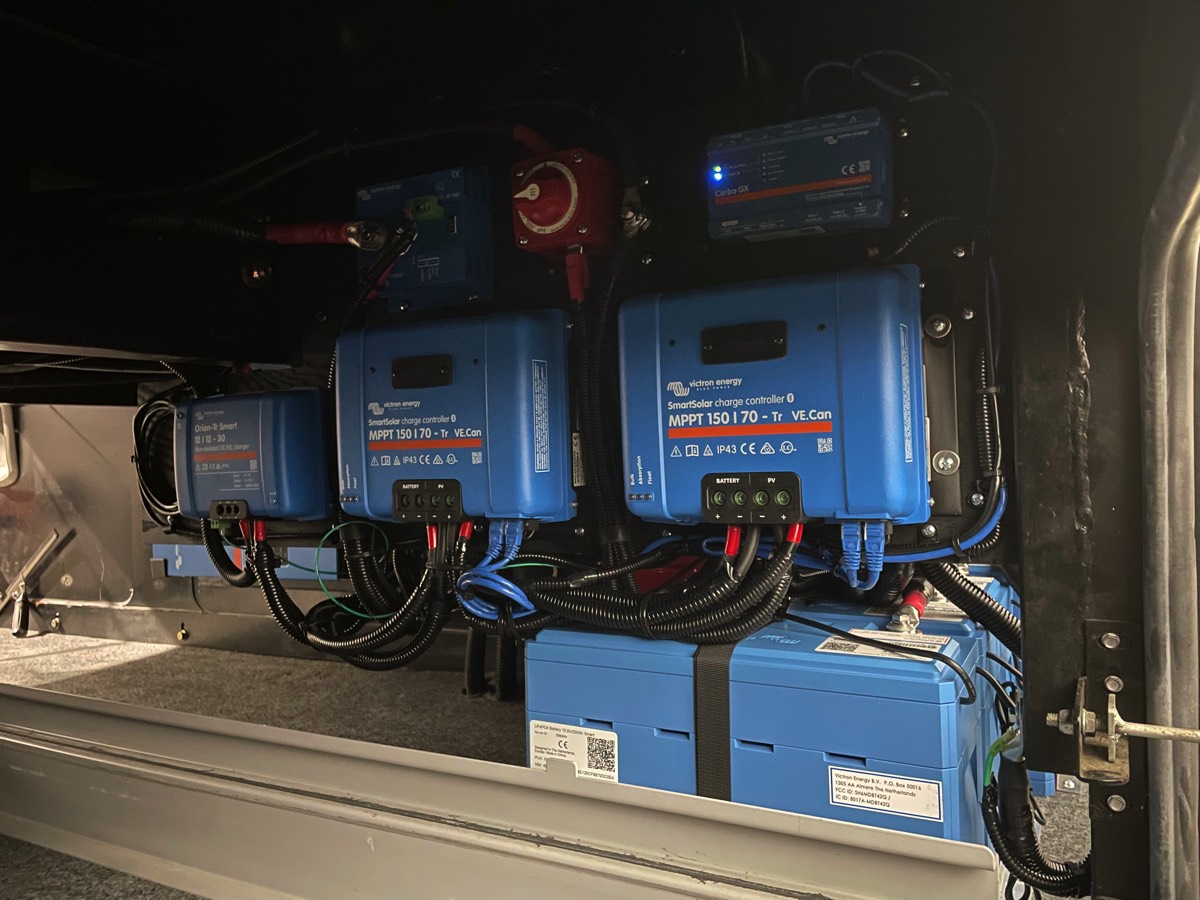

2011 Tiffin Phaeton 40 QBH
This system comprised 800Ah VE SmartLithium battery with a VE MultiPlus II 3000 2 x 120V inverter charger. A 1600W solar system was installed and alternator charge via an Orion-Tr DC-DC charger.
INSTALLATIONS
Below are details and pictures of some of our recent installations

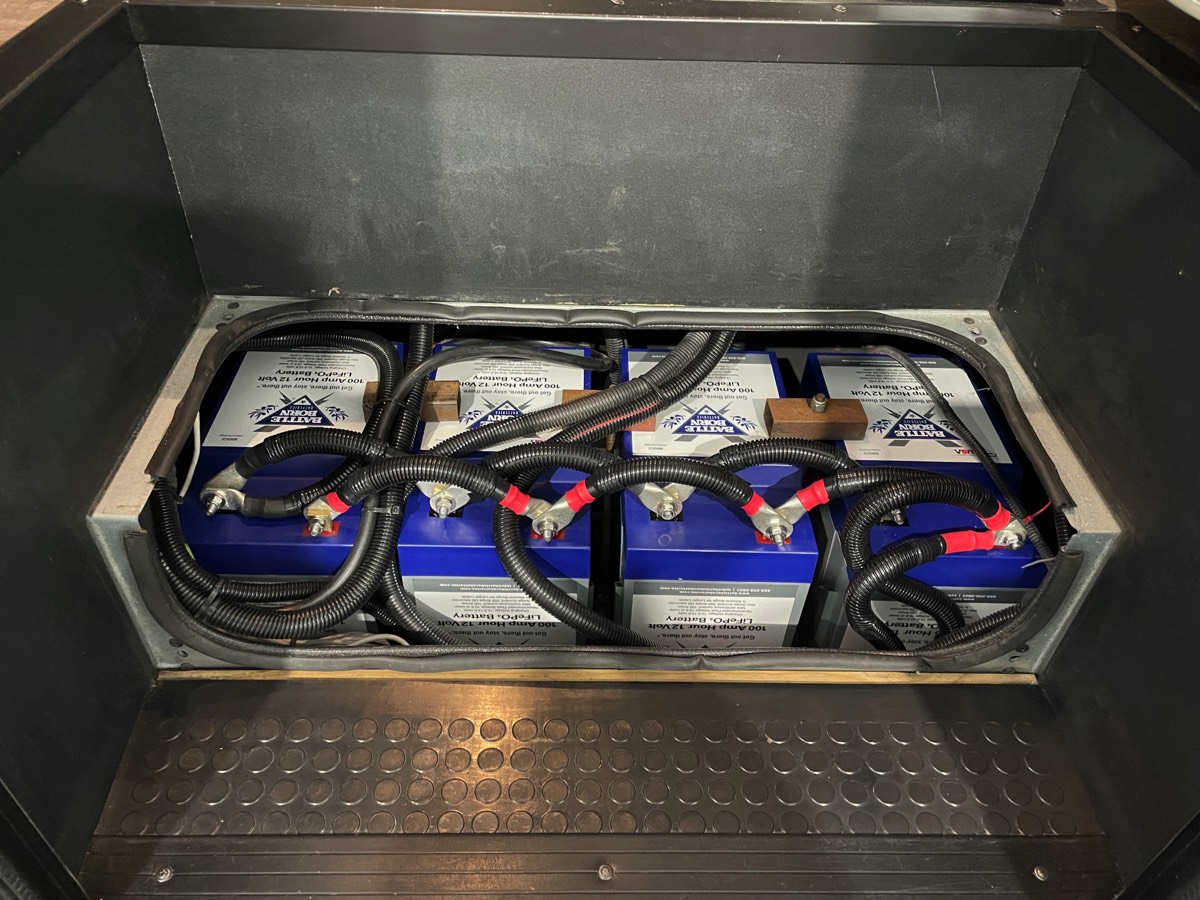

Fleetwood Discovery Class A
A 400Ah Battle Born battery was installed in the factory battery tray with a VE MultiPlus II 3000 2 x 120V inverter charger and Orion-Tr alternator charge system installed in an adjacent basement bay.

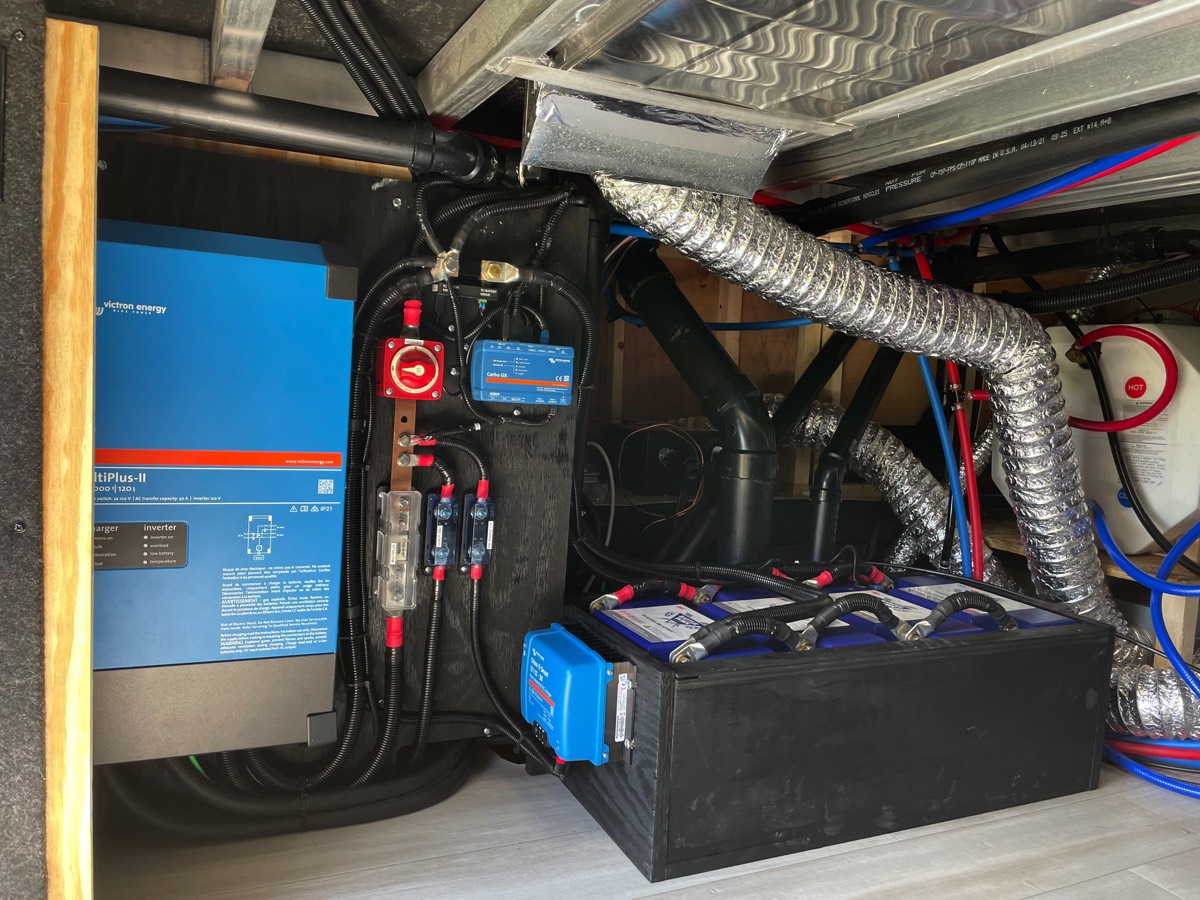

2021 Grand Design Solitude Fifth Wheel Model 310GK-R
4 x 100Ah Battle Born batteries with a VE MultiPlus II 3k 2 x 120V inverter charger suitable for the 50A shore power connection. A GX Touch and Cerbo GX were installed for monitoring and control. The customer wanted maximum remaining storage, so we tucked the batteries and MultiPlus behind the basement rear wall.

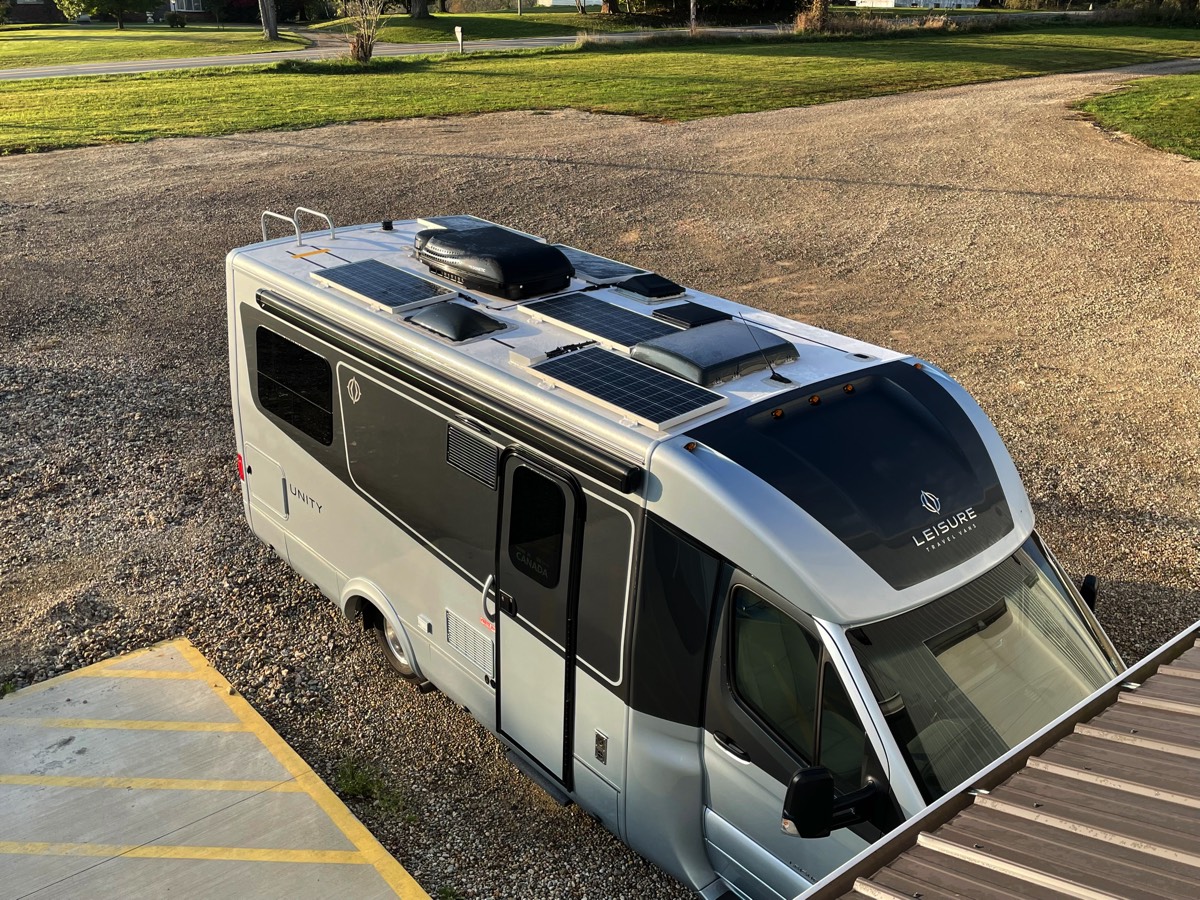

2021 Leisure Travel Van Unity Twin Bed
This customer had 2 x Dragonfly Energy 100Ah lithium batteries from the factory. We installed 5 x 100W rigid solar panels with a VE SmartSolar 100/50 charge controller. A SmartShunt was added for battery state of charge monitoring. The customer also wanted a means to charge the chassis battery when the house battery was being charged, an Orion-Tr 18A DC-DC charger was added to handle this duty. It was programmed to turn on and charge the chassis battery when the house battery was being charged by solar, shore power or generator.

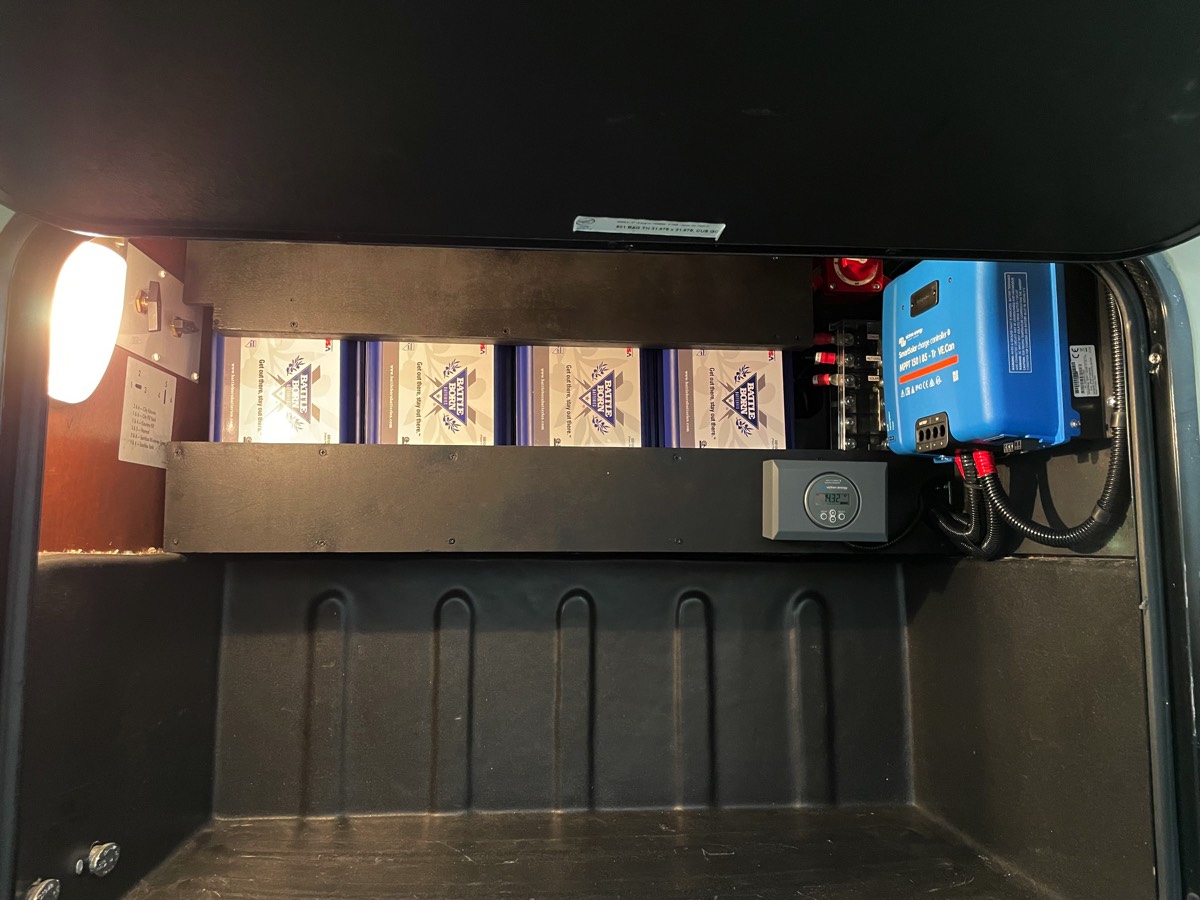

2015 Jayco Grayhawk 29MV 32ft Class C
This system included 400Ah Battle Born lithium batteries installed in a custom cabinet in the upper area of a rear storage compartment so that most of the storage area would remain. Alternator charge of the lithium batteries was via an Orion-Tr DC-DC charger. An 800W solar system was installed with a 150/85A solar charger. Control was via Bluetooth.
