Stacks Image 2530

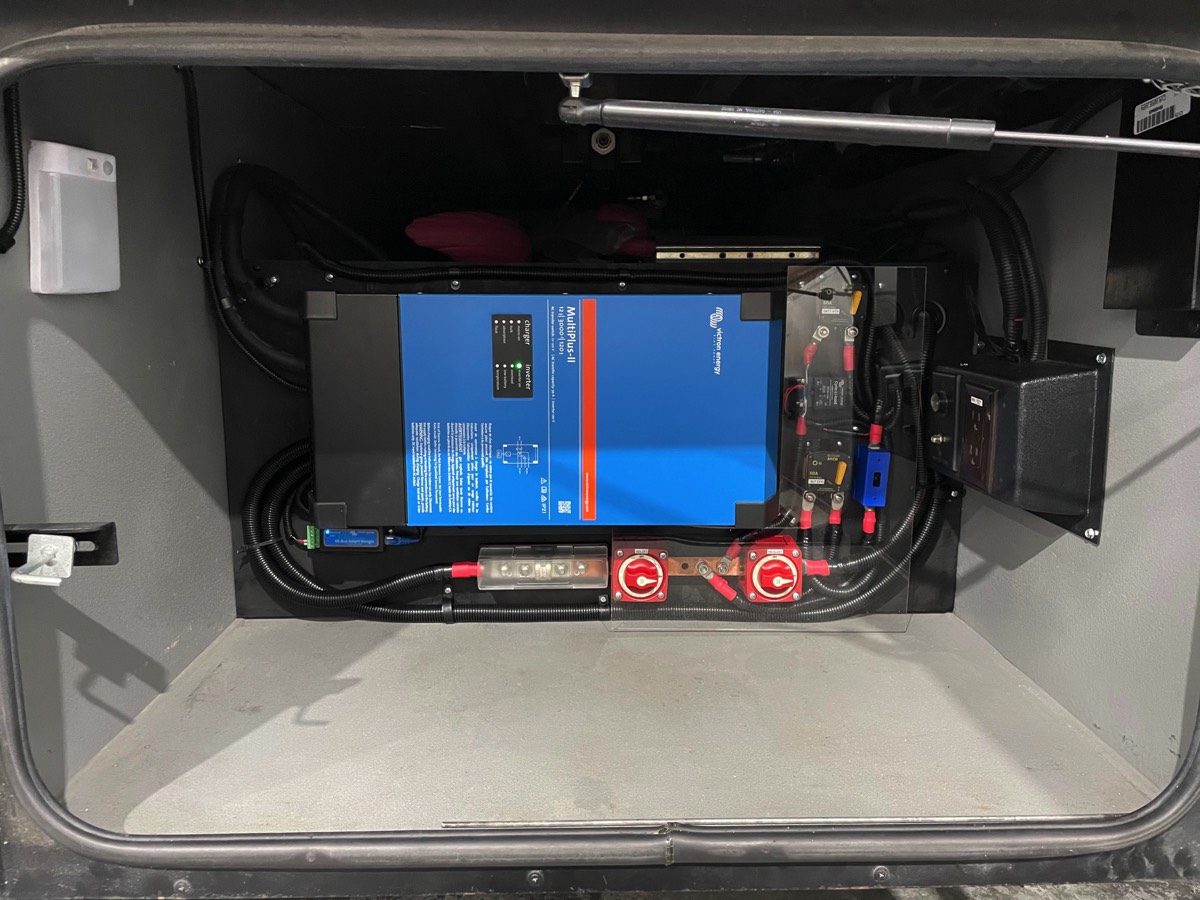

2016 Tiffin Allegro Open Road Class A

We added heat pads to the customers 4 lithium batteries that are installed under the step in the factory location. A Victron MultiPlus II 3000 2 x 120V inverter charger was installed that is able to handle a full 50A shore power connection. Alternator charging was upgraded with an Orion-Tr DC-DC charger.
More Pictures...
Stacks Image 2512

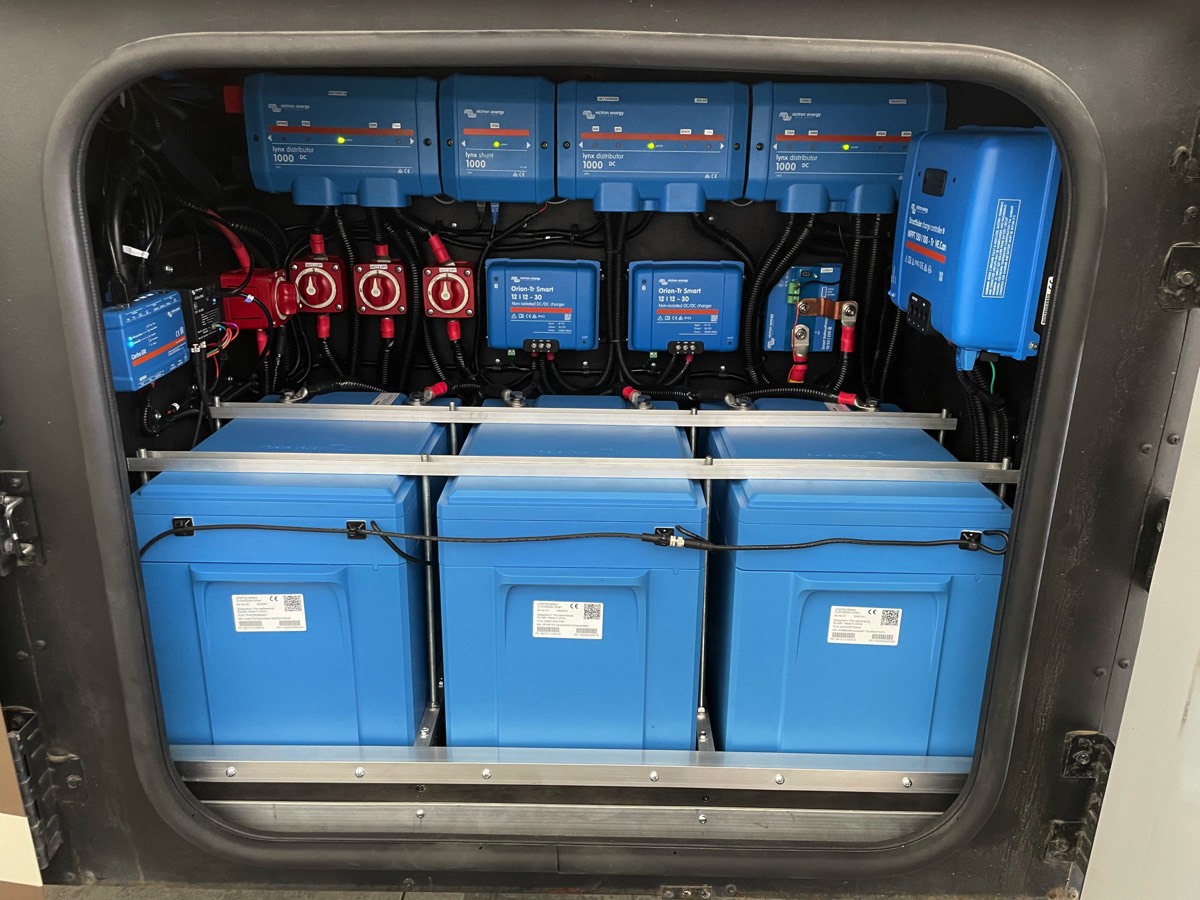

2018 Winnebago Forza 36G Class A

This was a very large system with 3 x 300Ah Victron SmartLithium batteries, a MultiPlus II 3000 2 x 120V inverter charger and Victron’s Lynx bus bar system. The alternator charge system was upgraded with Orion-Tr DC-DC chargers. We added 4 x Renogy 320W solar panels on custom mounts to suit the crown on the roof. Soft starts were installed on both air conditioners and modifications made to the factory load shed system to enable one of the A/C units to run off the inverter. The result was a comprehensive and very capable off-grid system. Monitoring is by a GX Touch screen and Digital Multi Control.
More Pictures...
Stacks Image 2494

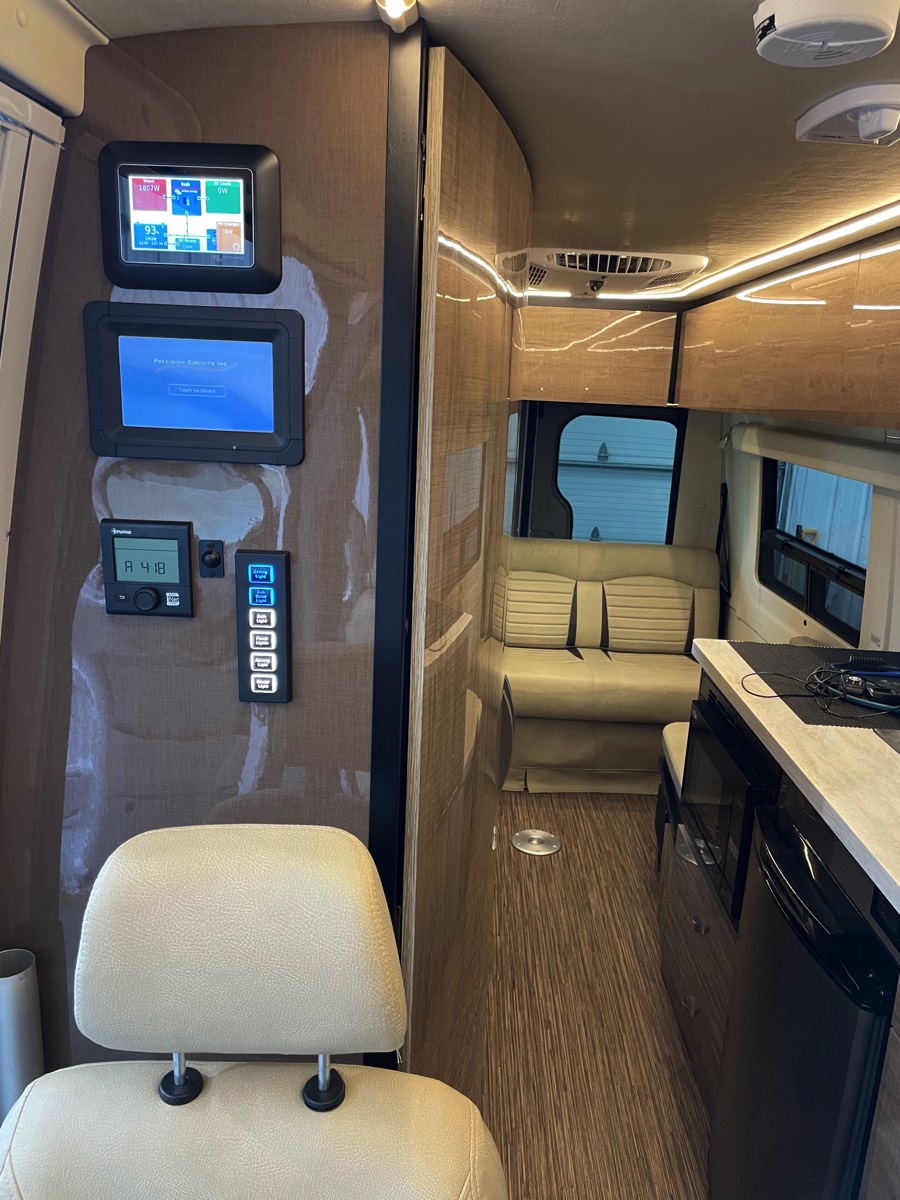

2018 Winnebago Era (Mercedes)

We installed 4 x 100Ah Battle Born lithium batteries in heavily modified factory battery trays. A MultiPlus II 3000 inverter charger was also fitted. The slimline profile of the new MultiPlus II was ideal for installation under the rear bench seat / bed. The alternator charge system was upgraded with two Orion-Tr DC-DC chargers, one to charge the house battery and a smaller unit to charge the starter battery when the house battery is charging and almost full. We added 1 x Renogy 100W solar panel to the factory 200W system and upgraded the solar charger. A GX Touch screen rounds out the installation. A soft starter was installed on the air conditioner. This upgrade system enables full system operation when off grid including running the air conditioner.
More Pictures...
Stacks Image 2640

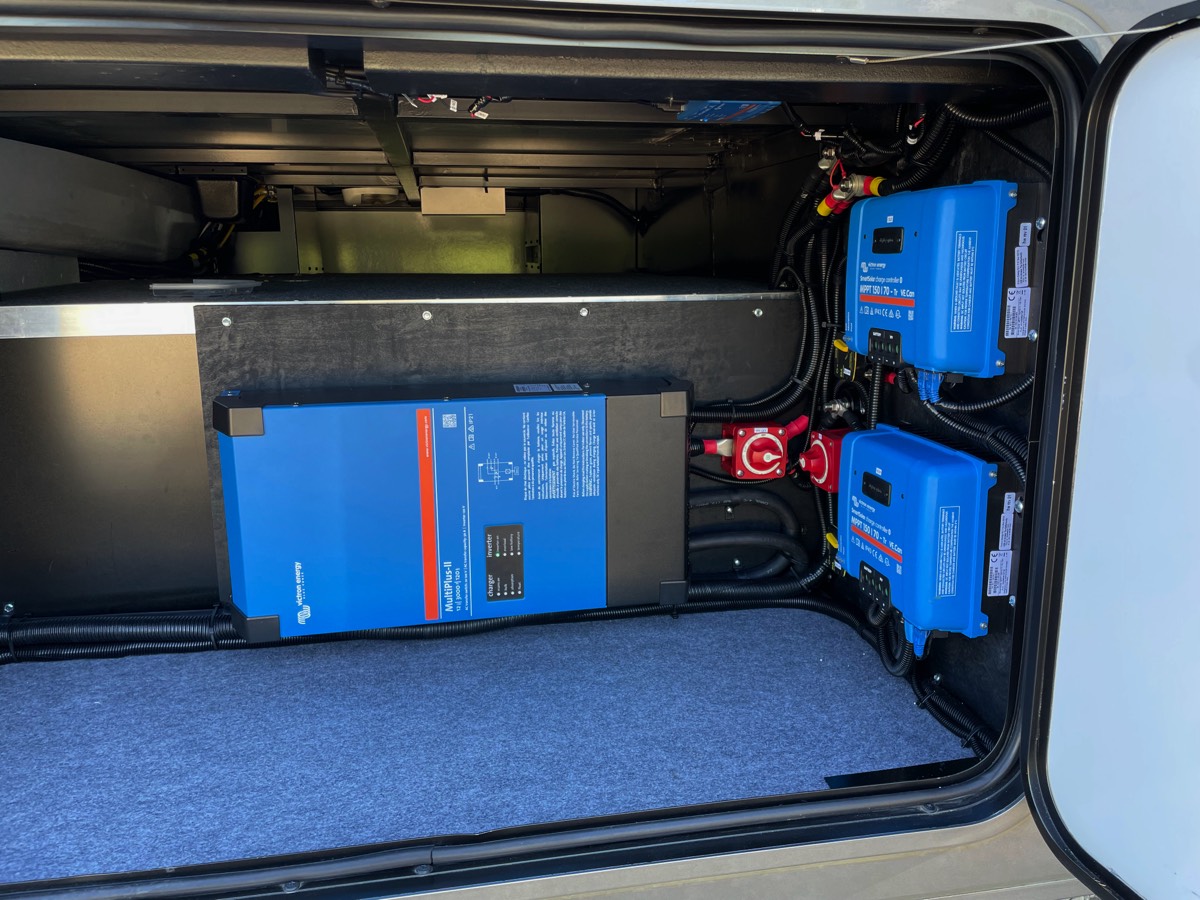

2020 Winnebago Adventurer 29B Class A

We installed 6 x 100Ah Battle Born lithium batteries in one of the bench seats. A MultiPlus II 3000 2 x 120V inverter charger was installed with the other equipment directly below the bench seat to ensure minimal wiring lengths. The alternator charge system was upgraded with an Orion-Tr DC-DC charger and 2 x 150/70W Victron solar chargers were paired to 4 new 200W solar panels and the exisiting 3 x 100W panels. The customer plans to upgrade the existing 3 x 100W panels to a 600W system later this year. A Cerbo GX and GX Touch were installed for system control which enables auto generator start of the Onan generator via the GX Touch panel.
More Pictures...
Stacks Image 2622

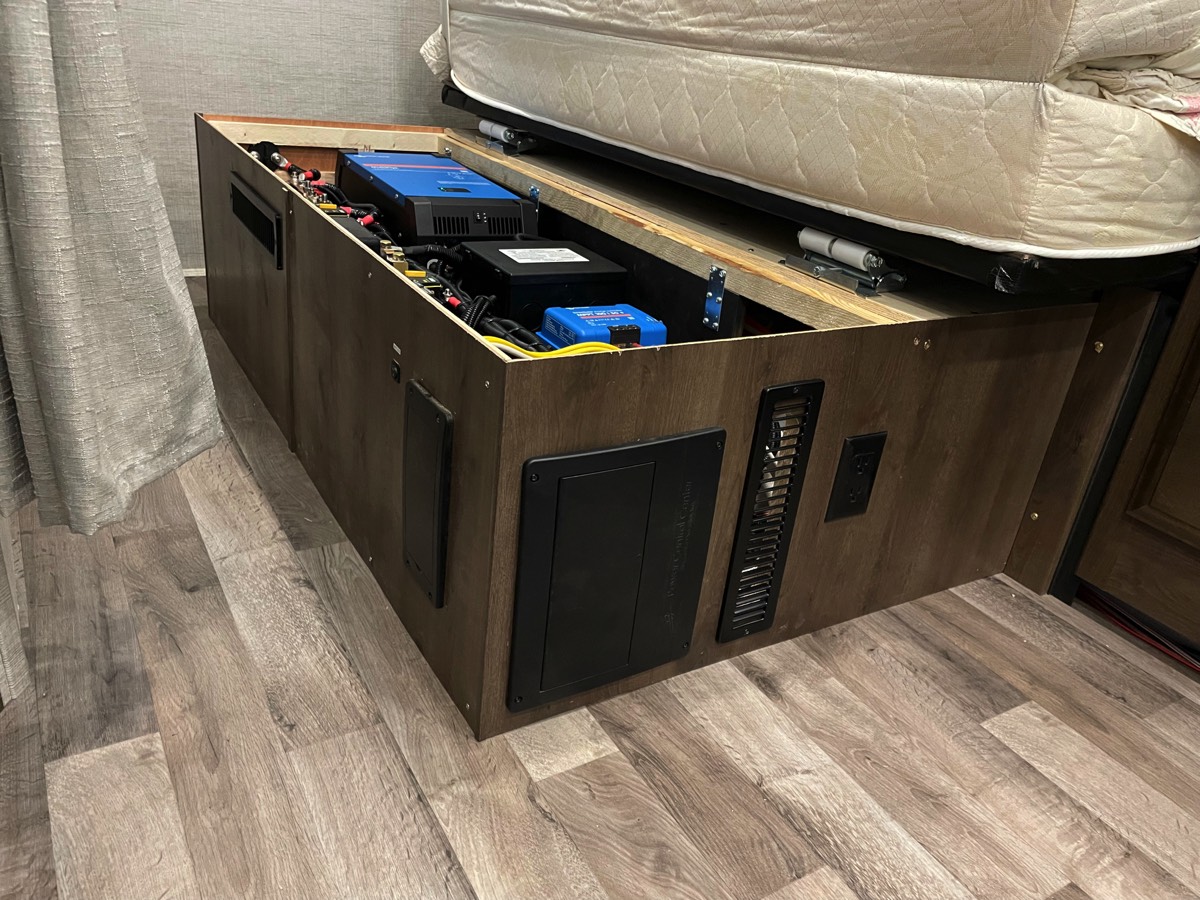

Jayco Melbourne 24L

Smaller installation in a Jayco Melbourne 24L including 2 x 100Ah Battle Born batteries a MultiPlus 2000 inverter charger and alternator charging. The installation was squeezed in a very tight space under the slide out bed.
More Pictures...
